Hyundai Elantra Owners Manual

Outside rearview mirror
Features of your vehicle / Mirrors / Outside rearview mirror

Be sure to adjust mirror angles before driving.

Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded back to prevent damage during an automatic car wash or when passing in a narrow street.

Hyundai Elantra: Outside rearview mirror. - Rearview mirrorsWARNING - Rearview mirrors

  • The right outside rearview mirror is convex. Objects seen in the mirror are closer than they appear.
  • Use your interior rearview mirror or direct observation to determine the actual distance of following vehicles when changing lanes.

Hyundai Elantra: Outside rearview mirror. Do not scrape ice off the mirror face; this may damage the surface of the glass. CAUTION

Do not scrape ice off the mirror face; this may damage the surface of the glass. If ice should restrict movement of the mirror, do not force the mirror for adjustment. To remove ice, use a deicer spray, or a sponge or soft cloth with warm water.

Hyundai Elantra: Outside rearview mirror. If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved CAUTION

If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray de-icer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.

Hyundai Elantra: Outside rearview mirror. Do not adjust or fold the outside rearview mirrors while the vehicle is moving.WARNING

Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident which could cause death, serious injury or property damage.

Remote control

Hyundai Elantra: Outside rearview mirror. Manual type (if equipped)

Manual type (if equipped)

The outside rearview mirrors are equipped with a remote control for your convenience. It is operated by the control lever in the bottom front corner of the window.

Before driving away, always check that your mirrors are positioned so you can see behind you, both to the left and right sides, as well as directly behind your vehicle. When using the mirror, always exercise caution when attempting to judge the distance of vehicles behind or along side of you.

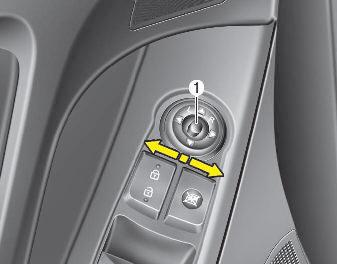

Hyundai Elantra: Outside rearview mirror. Electric type (if equipped)

Electric type (if equipped)

The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors. To adjust the position of either mirror, the ignition switch should be in the ACC or ON position, or engine is running. Push the switch (1) to R or L to select the right side mirror or the left side mirror, then press a corresponding point on the mirror adjustment control to position the selected mirror up, down, left or right.

After the adjustment, put the switch into the neutral (center) position to prevent inadvertent adjustment.

Hyundai Elantra: Outside rearview mirror. CAUTION

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
  • Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the mirror.

Folding the outside rearview mirror (if equipped)

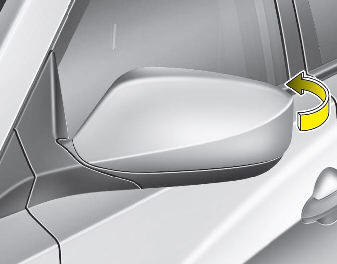

Hyundai Elantra: Outside rearview mirror. To fold outside rearview mirror, grasp the housing of mirror and then fold it

To fold outside rearview mirror, grasp the housing of mirror and then fold it toward the rear of the vehicle.
