Hyundai Elantra Owners Manual

Fuse/relay panel description
Maintenance / Fuses / Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

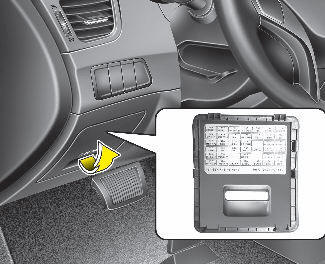

Inner panel fuse panel

Hyundai Elantra: Fuse/relay panel description. Engine compartment fuse panel

Engine compartment fuse panel

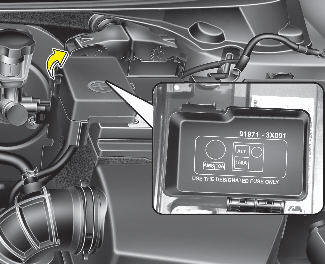

Hyundai Elantra: Fuse/relay panel description. Engine room (battery terminal cover)

Engine room (battery terminal cover)

Hyundai Elantra: Fuse/relay panel description. ✽ NOTICE

✽ NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
