Engine compartment fuse replacement
Maintenance / Fuses / Engine compartment fuse replacement

Hyundai Elantra: Engine compartment fuse replacement. 1. Turn the ignition switch and all other switches off.

1. Turn the ignition switch and all other switches off.

2. Remove the fuse panel cover by pressing the tab and pulling up.

3. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

4. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized HYUNDAI dealer.

Hyundai Elantra: Engine compartment fuse replacement. After checking the fuse panel in the engine compartment, securely install the CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. If not, electrical failures may occur from water contact.

Main fuse

Hyundai Elantra: Engine compartment fuse replacement. If the main fuse is blown, it must be removed as follows:

If the main fuse is blown, it must be removed as follows:

1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the nuts shown in the picture above.
4. Replace the fuse with a new one of the same rating.
5. Reinstall in the reverse order of removal.

Multi fuse

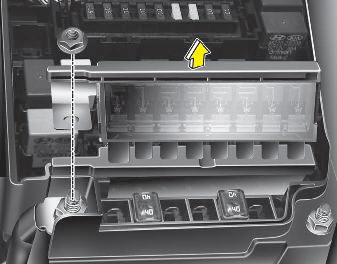

Hyundai Elantra: Engine compartment fuse replacement. If the multi fuse is blown, it must be removed as follows:

If the multi fuse is blown, it must be removed as follows:

1. Remove the fuse panel in the engine compartment.
2. Remove the nuts shown in the picture above.
3. Replace the fuse with a new one of the same rating.
4. Reinstall in the reverse order of removal.

✽ NOTICE

If the main or multi fuse is blown, consult an authorized HYUNDAI dealer.
