Blade replacement
Maintenance / Wiper blades / Blade replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

Hyundai Elantra: Blade replacement. To prevent damage to the wiper arms or other components, do not attempt to move CAUTION

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

Hyundai Elantra: Blade replacement. The use of a non-specified wiper blade could result in wiper malfunction and CAUTION

The use of a non-specified wiper blade could result in wiper malfunction and failure.

Front windshield wiper blade Type A

Hyundai Elantra: Blade replacement. 1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic

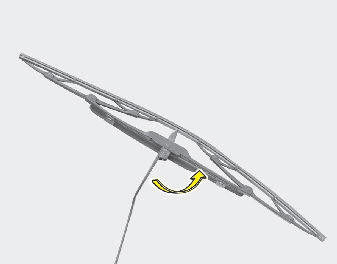

1. Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.

Hyundai Elantra: Blade replacement. Do not allow the wiper arm to fall against the windshield, since it may chip CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

Hyundai Elantra: Blade replacement.

Hyundai Elantra: Blade replacement. 2. Compress the clip and slide the blade assembly downward.

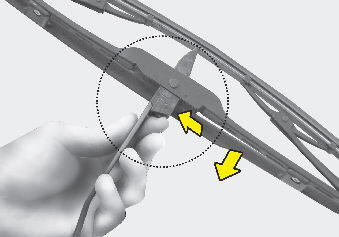

2. Compress the clip and slide the blade assembly downward.

3. Lift it off the arm.

4. Install the blade assembly in the reverse order of removal.

Front windshield wiper blade Type B

Hyundai Elantra: Blade replacement. 1. Raise the wiper arm.

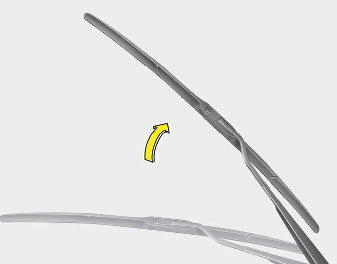

1. Raise the wiper arm.

Hyundai Elantra: Blade replacement. Do not allow the wiper arm to fall against the windshield, since it may chip CAUTION

Do not allow the wiper arm to fall against the windshield, since it may chip or crack the windshield.

Hyundai Elantra: Blade replacement. 2. Lift up the wiper blade clip. Then pull down the blade assembly and remove

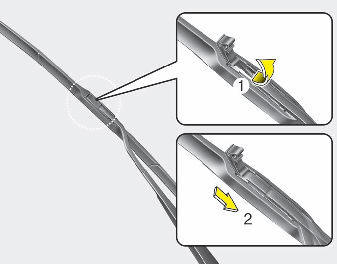

2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

Hyundai Elantra: Blade replacement. 3. Install the new blade assembly in the reverse order of removal.

3. Install the new blade assembly in the reverse order of removal.
