Filter replacement

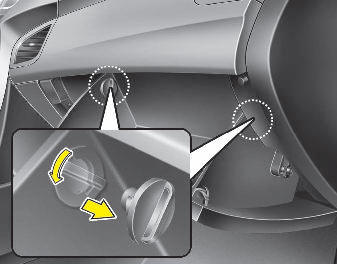

Hyundai Elantra: Filter replacement. 1. With the glove box open, remove the stoppers by turning them counterclockwise

1. With the glove box open, remove the stoppers by turning them counterclockwise on both sides.

Hyundai Elantra: Filter replacement. 2. Remove the climate control air filter cover (2) while pressing the lock (1)

2. Remove the climate control air filter cover (2) while pressing the lock (1) on the right of the cover.

Hyundai Elantra: Filter replacement. 3. Replace the climate control air filter.

3. Replace the climate control air filter.

4. Reassemble in the reverse order of disassembly.

✽ NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
