Front seat
Safety features of your vehicle / Seats / Front seat

Manual adjustment

Hyundai Elantra: Front seat. Forward and rearward

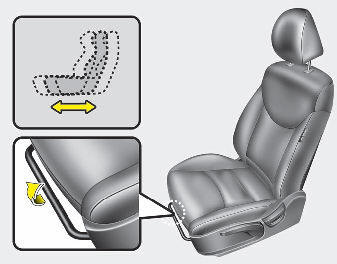

Forward and rearward

To move the seat forward or rearward:

1. Pull the seat slide adjustment lever up and hold it.

2. Slide the seat to the position you desire.

3. Release the lever and make sure the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and rearward without using the lever. If the seat moves, it is not locked properly.

Hyundai Elantra: Front seat. Seatback angle

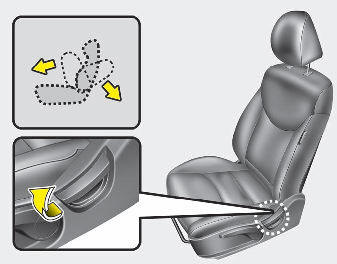

Seatback angle

To recline the seatback:

1. Lean forward slightly and lift up the seatback recline lever.

2. Carefully lean back on the seat and adjust the seatback of the seat to the position you desire.

3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

Hyundai Elantra: Front seat. Seat cushion height (for driverТs seat) (if equipped)

Seat cushion height (for driverТs seat) (if equipped)

To change the height of the seat cushion, push the lever upwards or downwards.

To lower the seat cushion, push the lever down several times.

To raise the seat cushion, pull the lever up several times.

Headrest

Hyundai Elantra: Front seat. The driver's and front passenger's seats are equipped with a headrest for the

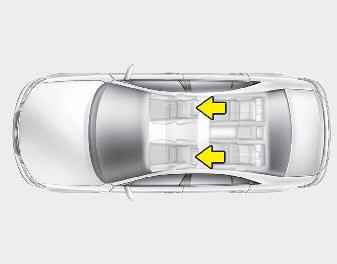

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort.

The headrest not only provides comfort for the driver and front passenger, but also helps to protect the head and neck in the event of a collision.

Hyundai Elantra: Front seat. WARNING

  • For maximum effectiveness in case of an accident, the headrest should be adjusted so the middle of the headrest is at the same height of the center of gravity of an occupant's head. Generally, the center of gravity of most people's head is similar with the height of the top of their eyes. Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.
  • Do not operate the vehicle with the headrests removed as severe injury to the occupants may occur in the event of an accident. Headrests may provide protection against neck injuries when properly adjusted.
  • Do not adjust the headrest position of the driver's seat while the vehicle is in motion.

Hyundai Elantra: Front seat. Adjusting the height up and down

Adjusting the height up and down

To raise the headrest, pull it up to the desired position (1). To lower the headrest, push and hold the release button (2) on the headrest support and lower the headrest to the desired position (3).

Hyundai Elantra: Front seat. Removal

Removal

To remove the headrest, raise it as far as it can go then press the release button (1) while pulling upward (2).

To reinstall the headrest, put the headrest poles (3) into the holes while pressing the release button (1). Then adjust it to the appropriate height.

Hyundai Elantra: Front seat. Make sure the headrest locks in position after adjusting it to properly protectWARNING

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

Seat warmer (if equipped)

Hyundai Elantra: Front seat. The seat warmer is provided to warm the front seats during cold weather.With

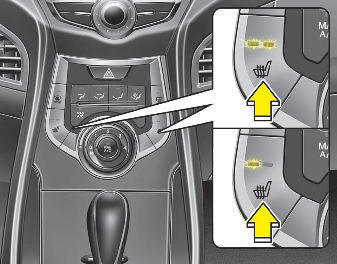

The seat warmer is provided to warm the front seats during cold weather.With the ignition switch in the ON position, push either of the switches to warm the driver's seat or the front passenger's seat.

During mild weather or under conditions where the operation of the seat warmer is not needed, keep the switches in the OFF position.

  • Each time you push the button, the temperature setting of the seat is changed as follows :

Hyundai Elantra: Front seat.

  • The seat warmer defaults to the OFF position whenever the ignition switch is turned on.

✽ NOTICE

With the seat warmer switch in the ON position, the heating system in the seat turns off or on automatically depending on the seat temperature.

Hyundai Elantra: Front seat. CAUTION

  • When cleaning the seats, do not use an organic solvent such as thinner, benzene, alcohol and gasoline. Doing so may damage the surface of the heater or seats.
  • To prevent overheating the seat warmer, do not place anything on the seats that insulates against heat, such as blankets, cushions or seat covers while the seat warmer is in operation.
  • Do not place heavy or sharp objects on seats equipped with seat warmers. Damage to the seat warming components could occur.

Hyundai Elantra: Front seat. - Seat warmer burnsWARNING - Seat warmer burns

Passengers should use extreme caution when using seat warmers due to the possibility of excess heating or burns. The occupants must be able to feel if the seat is becoming too warm and to turn the seat warmer off. The seat warmer may cause burns even at low temperatures, especially if used for long periods of time. In particular, the driver must exercise extreme care for the following types of passengers:

1. Infants, children, elderly or disabled persons, or hospital outpatients
2. Persons with sensitive skin or those that burn easily
3. Fatigued individuals
4. Intoxicated individuals
5. Individuals taking medication that can cause drowsiness or sleepiness (sleeping pills, cold tablets, etc.)

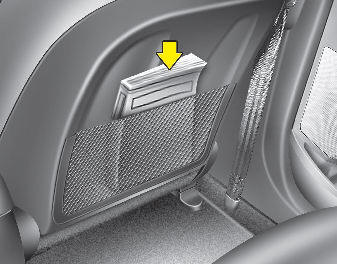

Seatback pocket (if equipped)

Hyundai Elantra: Front seat.

Hyundai Elantra: Front seat. - Seatback pocketsWARNING - Seatback pockets

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure vehicle occupants.

Hyundai Elantra: Front seat. For proper operation of the occupant classification system:WARNING

For proper operation of the occupant classification system:

  • Do not place any items cumulatively weighing over 2.2 lbs (1 kg) in the seatback pocket or on the seat.
  • Do not hang onto the front passenger seat.
